Altronics Multi-Zone HDMI UTP Balun Extension System A3224
This device allows you to split 1 HDMI input source into 4 output devices. We have been told it works with Foxtel by our customers. This kit comes ready to split 2 TV's. If you would like to do an additional 2, you will need to purchase extra receivers to do so.
1 x output is HDMI
3 outputs are over Cat 5e/6 (max 50m)
Specifications
- Video bandwidth: 1.65Gps
- Resolution: 1080p/1080i/720i/720p/480p
- Transmitter connections: HDMI input, HDMI output (loop through), 3 x Cat6/5e output RJ45 socket
- Receiver connections: HDMI output, Cat6/5e input RJ45 socket
- Tranceiver connections: HDMI output, Cat6/5e input RJ45 socket, Cat6/5e output RJ45 socket
- Audio format :LPCM
- Range: Up to 50m 1080p Cat6
- Power supply: Transmitter 5V 2A; Receiver 5V 1A
- Dimensions (L x W x H) mm: Tx 128 x 76 x 25, Rx/RxTx 77 x 64 x 25
For further information, visit their website.
https://www.altronics.com.au/p/a3224-multi-zone-hdmi-balun-extension-system/
A3224 • Altronics Multi-Zone HDMI UTP Balun Extension System
Overview
An ideal solution for pubs, clubs and venues, this HDMI balun extender system allows a single HDMI source to be shared across multiple screens located up to 30m away with Cat5e and 50m with Cat6. The transmitter is equipped with four outputs, one HDMI and three Cat6 UTP which transmit the HDMI source signal up to 50m away (1080p). Each UTP output can be either connected direct to a receiver (A 3226), or alternatively a transceiver (A 3225) and receiver can be ‘daisychained’. Maximum of 7 screens can be connected to the same HDMI source. HDCP compliant.
Transmitter: Accepts High Definition sources (Games platform, Blu-ray player (inc 3-D), DVD player, satellite receivers, digital projectors, A/V receivers and set up boxes) and transmits video and audio over Cat.6 up to 50m. HDMI connector input + HDMI output + 3x Cat. 6 outputs. Power Supply 5V 2A.

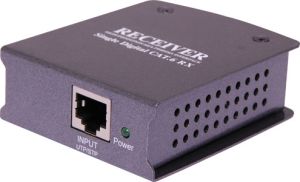

Receiver: Accepts the Cat. 6 cable from the Transmitter, thereby acting as the extender of the original HDMI source. This is connected to the HDMI port of the HDTV monitor. Cat. 6 connector input + HDMI output. Power Supply 5V 1A.
Package includes:
1 x Transmitter
1 x Receiver
2 x Power Supplies: Transmitter 5V 2A; Receiver / Transceiver 5V 1A
Features
- Transmits 1080p HDMI signal up to 50m using standard Cat6 network cable
- Support for a maximum of 7 screens
- Supports 1.65Gbps per channel
- HDCP source and output displays
Specifications
- Video bandwidth: 1.65Gps
- Resolution: 1080p/1080i/720i/720p/480p
- Transmitter connections: HDMI input, HDMI output (loop through), 3 x Cat6/5e output RJ45 socket
- Receiver connections: HDMI output, Cat6/5e input RJ45 socket
- Tranceiver connections: HDMI output, Cat6/5e input RJ45 socket, Cat6/5e output RJ45 socket
- Audio format :LPCM
- Range: Up to 50m 1080p Cat6
- Power supply: Transmitter 5V 2A; Receiver 5V 1A
- Dimensions (L x W x H) mm: Tx 128 x 76 x 25, Rx/RxTx 77 x 64 x 25
